Dear Radiofriend Welcome at my personal page, welc@me

My name is Jan, I like to make DX with my homemade antennas.

fotoalbum-eu.s3.amazonaws.com/images1/201112/199607/frontImage1324403501.jpg

My 1e project was a 3 el Cubical Quad, because we can not purchase materials I decided to make it from Bamboo.
The 3 element quad was too big and too heavy for me to put it up so I decided to change it into a 2 el Quad.

www.irdx.org/153ir/dx/Quad/dsc00014.jpg

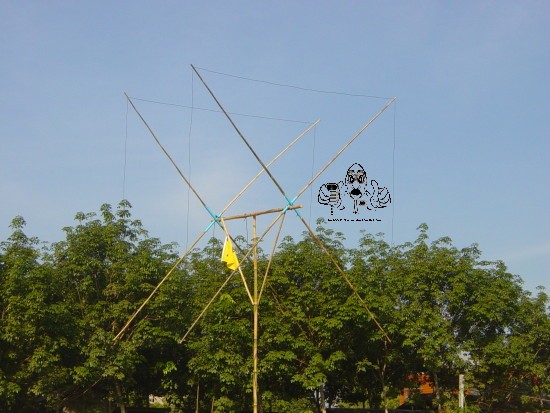

The 2 el bamboo quad
www.irdx.org/153ir/dx/Quad/dsc00011.jpg

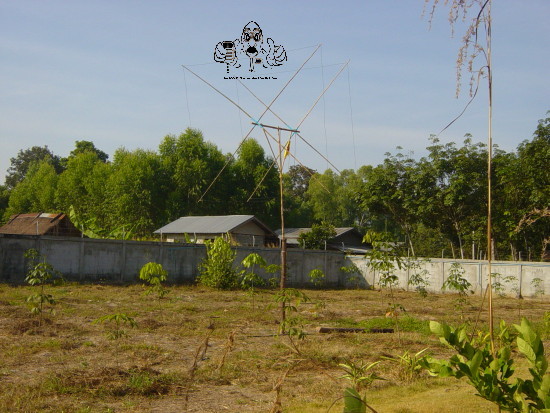

The antenna is 5 meter from the ground
www.irdx.org/153ir/dx/Quad/dsc00019.jpg
The 2 el bamboo quad, I made a shorter boom and changed lenght of wires to obtain a better SWR, thanks to Dave 30DA016 for helping me out !

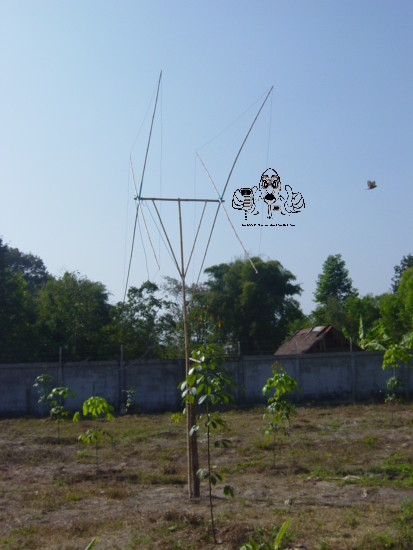

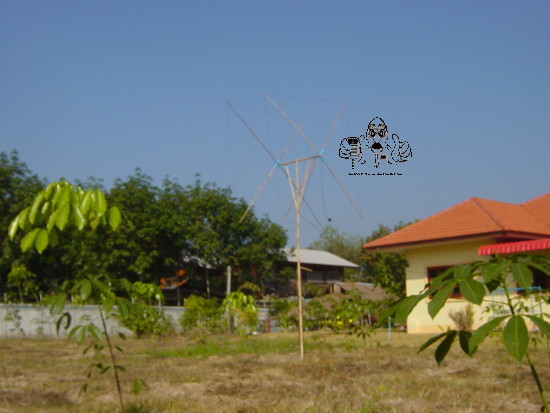

www.irdx.org/153ir/dx/Quad/dsc00023.jpg
The antenna is still 5 meter from the ground and works great, via LP worked West Indies with big Signal Reports, about 16-17.000 km from here.

My main Antenna: 2 Element Home made Bamboo Delta Loop


www.irdx.org/153ir/dx/Delta Loop/dsc00029.jpg

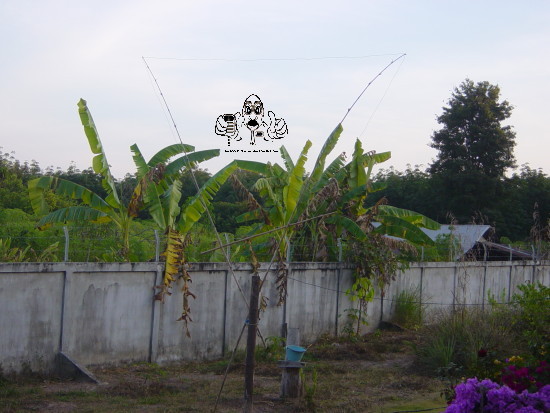

The 1 el Delta Loop, I am making a 2 el, the driven is finished
www.irdx.org/153ir/dx/Delta Loop/dsc00024.jpg

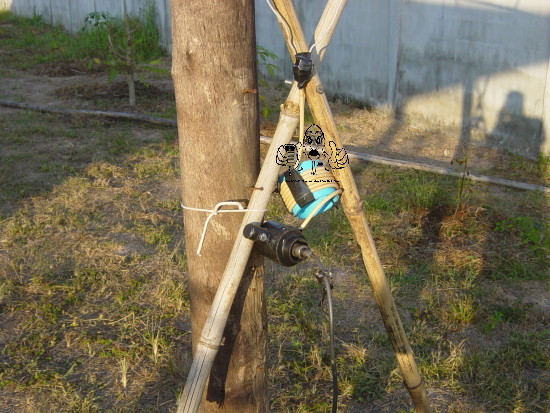

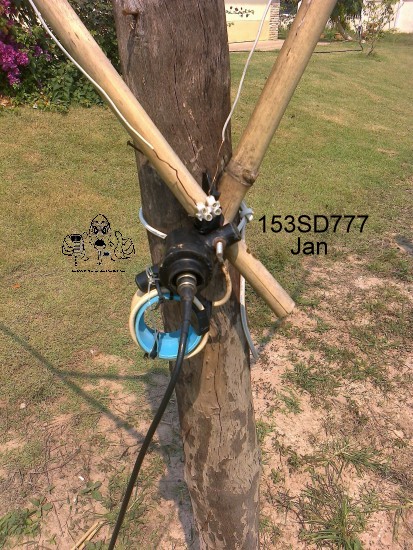

connection delta loop
www.irdx.org/153ir/dx/Delta Loop/dsc00032.jpg

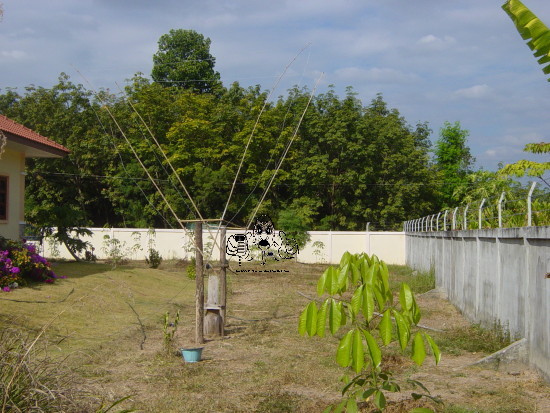

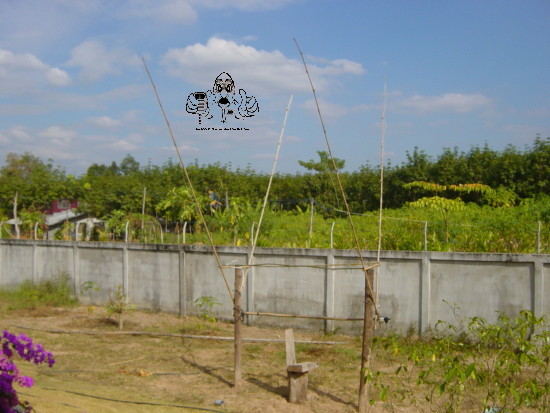

Delta Loop on testing area
www.irdx.org/153ir/dx/Delta Loop/dsc00034.jpg
Delta Loop on testing area
www.irdx.org/153ir/dx/Delta Loop/dsc00047.jpg

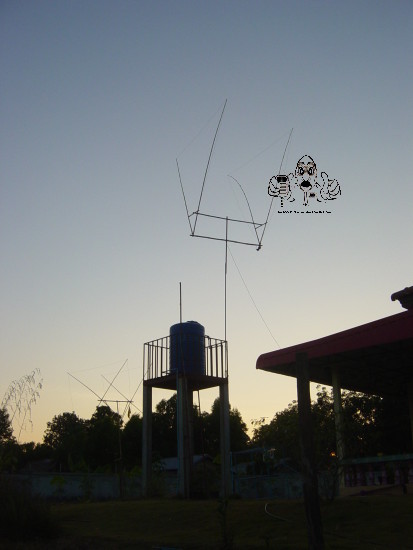

Bamboo 2 El Delta Loop up and working evening 16 Dec 2011
www.irdx.org/153ir/dx/Delta Loop/dsc00046.jpg

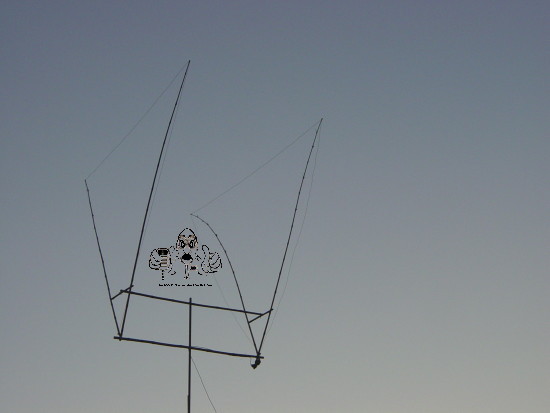

Bamboo 2 El Delta Loop up and Working evening 16 Dec 2011
www.irdx.org/153ir/dx/Delta Loop/dsc00049.jpg

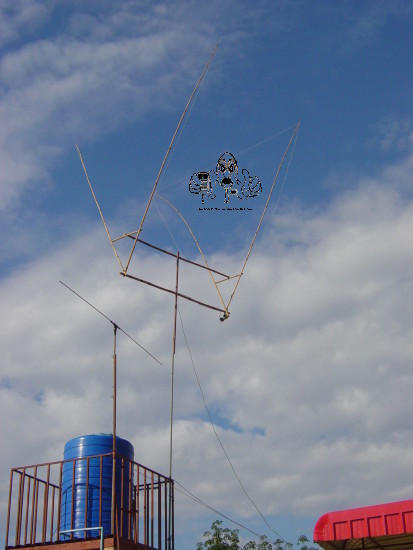

Bamboo 2 El Delta Loop up and working early morning 17 Dec 2011
www.irdx.org/153ir/dx/Delta Loop/dsc00048.jpg

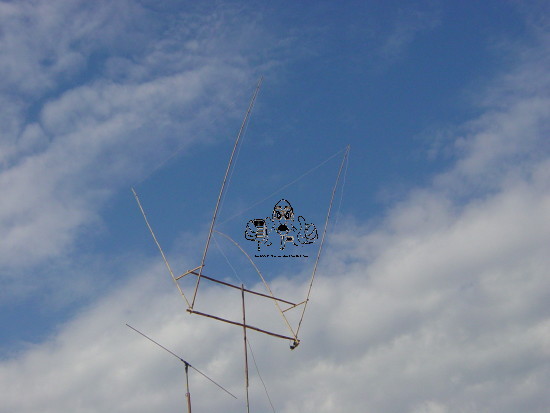

Bamboo 2 El Delta Loop up and Working early morning 17 Dec 2011
www.irdx.org/153ir/dx/Delta Loop/photo0140 kl.jpg

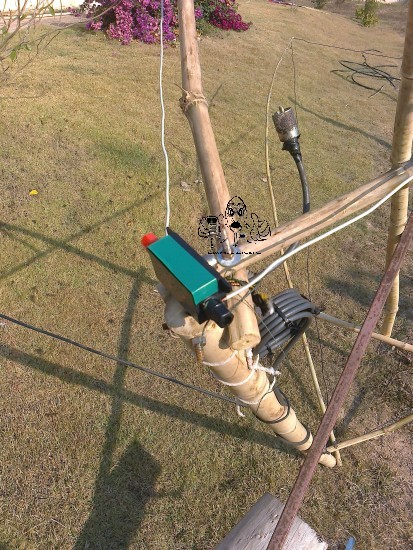

I changed the delta loop lately, I took off the 75 Ohm dirty balun, now the antenna is designed for use directly 50 Ohm, I use only connector for plug and made a choke in my 50 Ohm coax. Thank you Dave 30DA016 for calculations.

Portable 1 El Delta Loop

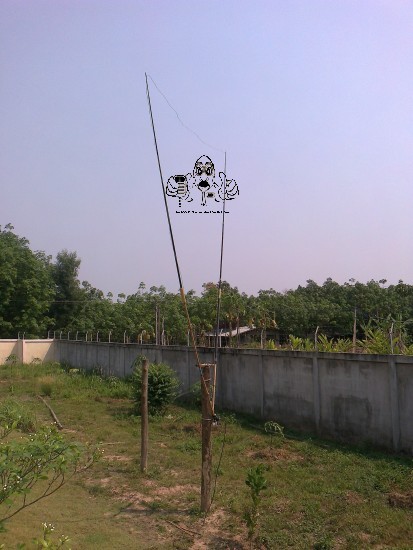

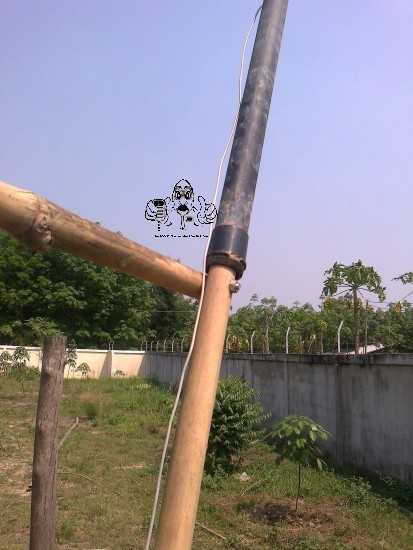

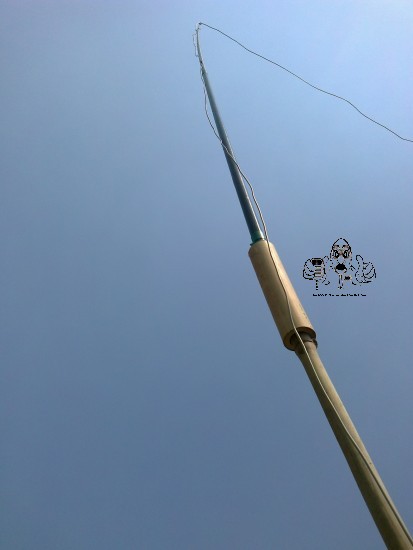

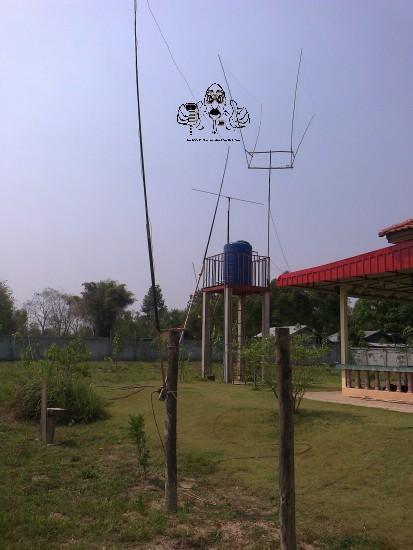

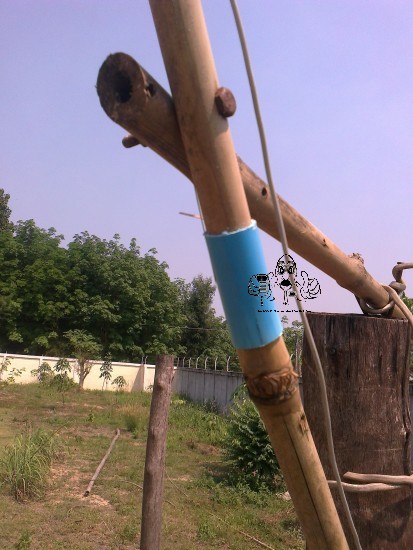

I just finished my new project, I can use this antenna to take portable anywhere, very easy to carry with you. the most longest pieces are at most 1 meter long, made of bamboo, fishing rod (fyberglass) and PVC parts including old electricity wire about 1.5 mm thickness.
Also used dirty balun home made of 1.80 mtr 75 Ohm coax.
The goal of the Choke Balun is to ensure no out of balance energy moves through it. As the name applies, the choke balun sees any extra current flowing back along the coax as out of balance and, through inductive impedance, blocks it and forces it to stay at your antenna.
Hope to hear you when I am portable.

www.irdx.org/153ir/dx/Delta Loop/portable/photo0168 kl.jpg

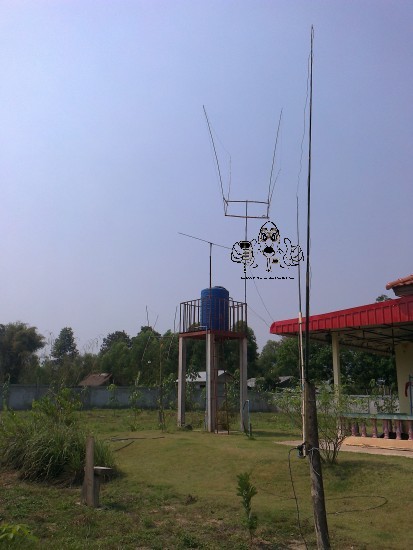

www.irdx.org/153ir/dx/Delta Loop/portable/photo0169 kl.jpg
